9-1393640-3
Manufacturer:
TE Connectivity
Mfr.Part #:
9-1393640-3
Datasheet:
Description:

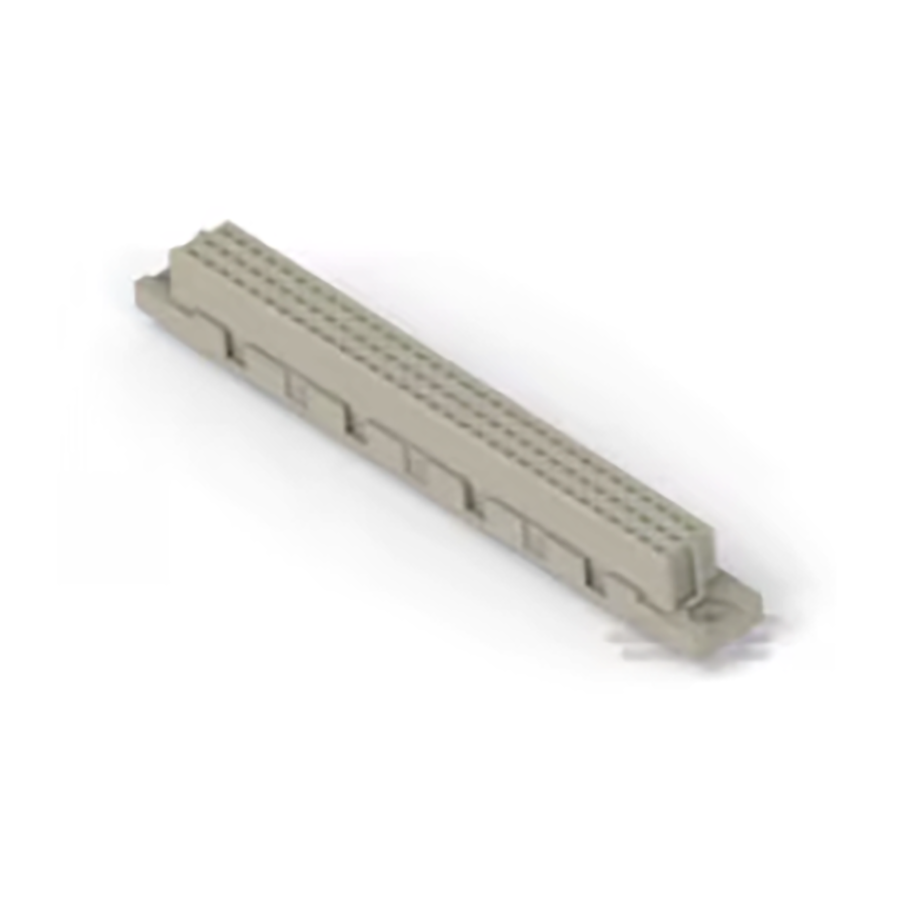

DIN 41612 Connectors Through Hole Number of Positions:64 Number of Rows:3 Pitch:2.54 mm C Receptacle
| Parameter | Value |
|---|---|
| Length | 95 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Voltage Rating (AC) | 250 V |
| Number of Pins | 64 |
| Height | 10.6 mm |
| Packaging | Box |
| Voltage Rating | 250 V |
| Depth | 10.6 mm |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| Insulation Resistance | 1 TΩ |
| REACH SVHC | Unknown |
| Contact Plating | Gold |
| Lead Length | 2.8956 mm |
| Contact Material(Contact Finish) | Bronze, Gold, Nickel |
| Pitch | 2.54 mm |
| Type | C |
| Current Rating | 2 A |
| Max Current Rating | 1.5 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Color | Grey |
| Gender | Receptacle |
| Shielding | Unshielded |
| Number of Contacts | 64 |
| Connector Type | Receptacle |
| Number of Positions | 64 |
| Number of Rows | 3 |
| Row Spacing | 2.54 mm |
| Insulation Material | PBT |
| Housing Material | Polyester |
| Contact Resistance | 15 mΩ |
| Max Voltage Rating (AC) | 250 V |
| Housing Color | Gray |
| Number of Positions Loaded | 64 |
| PCB Mounting Orientation | Vertical |
| PCB Thickness | 1.6 mm |
| Tail Length | 2.9 mm |
| Number of Signal Positions | 64 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 week ago) |
| Make First / Break Last | No |
| Sealable | No |
| Number of Columns | 32 |
| Termination Post Length | 2.9 mm |
| Mounting Angle | Vertical |
Stock: 3
Distributors
pcbx
pcbxUnit Price$6.13006
Ext.Price$6.13006
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $6.13006 | $6.13006 |
